MEGA

Two SUN objects printed big enough to hold with both hands. The jar unscrews. The vape holds five real devices and draws through all of them.

Then: the object, chapter by chapter

The compilation has audio and starts muted.

Assembled

Chapter 1 of 8

Forged

A giant SUN vape, printed in yellow, with the top that comes off and five real SUN devices inside. It went around a show floor on 2026-09-18 and got used.

A giant SUN jar, printed in white with orange lettering on the cap that turns with the cap. Unscrew, lift the lid, lift the seal, put it back together.

Size	179 × 80 × 337 mm assembled
Inside	five devices in seats 30.85 mm apart
Material	PETG, yellow as printed
Status	shipped; first shown 2026-09-18

Size	244 mm across, 201 mm tall assembled
Lid travel	44.8 mm on a two-start thread
Material	PLA, white; the letters a gradient PLA that prints as one colour
Status	in progress; carried at the event on 2026-09-18

Chapter 2 of 8

Scale

One rule for both: the widest part sits just under a 256 mm print bed. That put the jar at 7× and the vape at 4.5×. The numbers are caliper readings of the real parts against the print files.

Real part to giant
Jar base, across	34.9 mm	244.3 mm
Jar with lid, tall	28.8 mm	201.4 mm
Vape, tall	75.0 mm	336.6 mm
Vape footprint	39.8 × 17.8 mm	179 × 80 mm

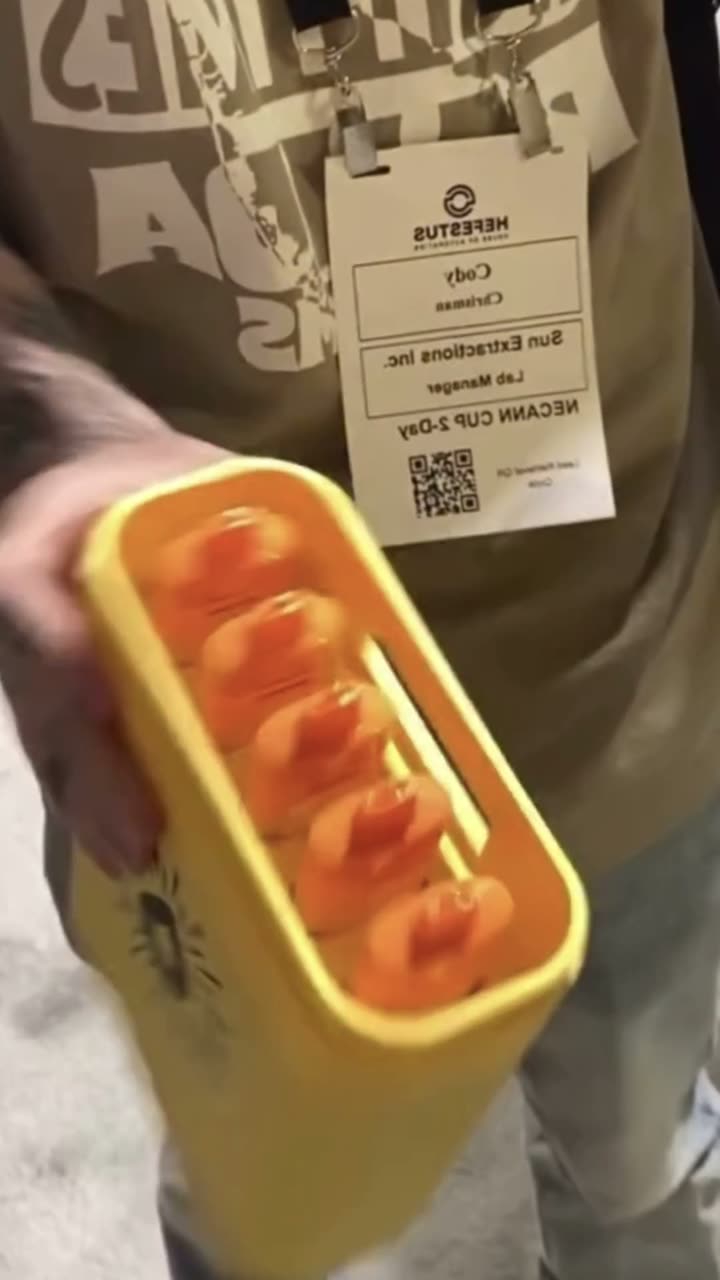

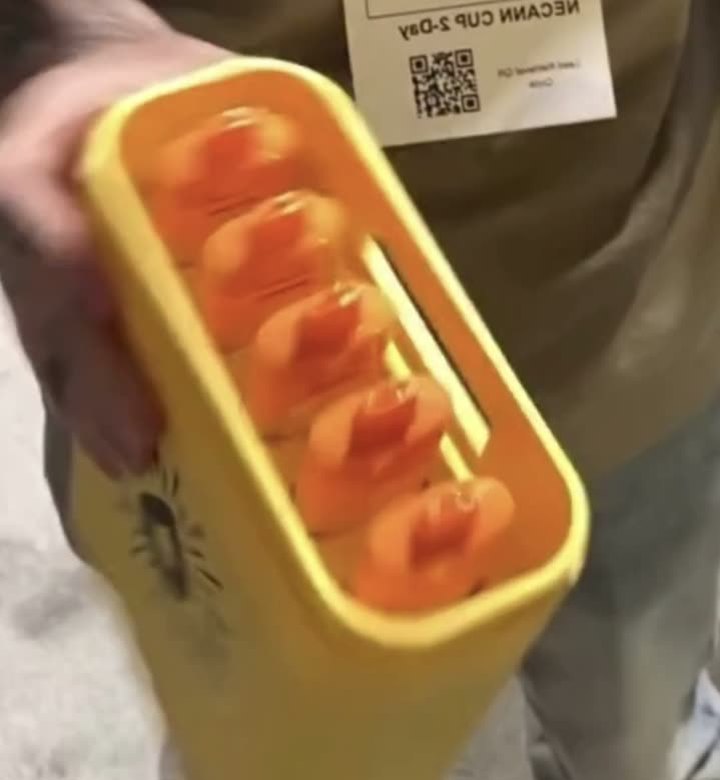

Two hands holding the MEGA vape from above on the show floor, the five orange device tops visible

For scale: the vape in two hands, from the footage.

Chapter 3 of 8

Apart

Unscrew, lift the lid, lift the seal, then back together. The lettering is in the cap, so it turns with it. The lid travels 44.8 mm on its thread; the printed geometry clears in about one turn. The seal's plug points down into the mouth and its disc sits on the rim.

The top comes off its skirt, then five devices rise from their seats. The seats are tapered so a real SUN AIO drops in and stays put; the window in the front wall shows them at the true ratio.

Scroll to move the object, or use the slider under the stage.

Turns to close: about one full turn, as the printed geometry does (a 44.8 mm lead over a 44.8 mm band).

Chapter 4 of 8

Inspect

The jar apart, every part named: the lid with its letters, the seal with its plug down, the jar with the two-start thread on its 44.8 mm band and the mouth the plug drops into.

The vape apart, every part named: the cap with the collector and riser inside it, five devices, the body with its seats, feeds and window.

Press a part to pick it out. Drag or use the arrow keys to turn the object.

Chapter 5 of 8

Airflow Illustration

Vape only. Five feeds run from the bottom face straight up to each seat. In the cap, five bores meet one shared collector, and one riser carries the draw to the mouth. The standard at the bench was that all five devices draw equally. The route follows the real bores. It is an illustration, not a fluid simulation, and not ten chambers.

Loading the section

The path on a centre-plane section of body v3.2 and cap v3, with measured sizes.

Chapter 6 of 8

In action

Footage from 2026-09-18: the 22 second compilation of people using the vape, and the two older clips. Everything plays muted until asked.

Chapter 7 of 8

Build notes

Build notes2026-09-05 to 09-13

Print weights and times are sliced estimates on a stock two-wall profile, not weighed parts.

Jar

Parts: Jar Ø244.3 × 161 mm. Lid Ø233.2 × 125.7 mm. Seal Ø166.8 disc, Ø135.7 plug down. Cap lettering as a 1 mm inlay, 175.2 × 65.7 mm.
Thread: Two starts, 44.8 mm lead, right hand. About one turn clears the crest. Lid clearance 2.0 mm after a 1.2 mm ring proved too tight.
Material: PLA. White body and lid. Letters in a gradient PLA that comes out as one colour over a few grams.
Print estimates: Jar 908 g, 13 h 42. Lid 731 g, 11 h 20. Seal 133 g, 2 h 20. Letters 10.5 g.

Vape

Parts: Body 179 × 80 × 231.8 mm. Cap with the mouth to 336.6 mm. Five seats 18 mm wide, 30.85 mm apart, in a 167 × 68 mm chamber. SUN letters and the drop-and-rays coin as inlays.
Top: Friction lid: a 12 mm skirt over a 2 mm rebate at the seam, 0.6 mm total clearance, with click detents.
Air: Five 5.5 × 3.0 mm feeds from the base to the seat floors. Cap: five Ø5 bores, an 8 mm collector along the spine, a Ø9 riser.
Material: PETG. Yellow as printed and filmed.

Chapter 8 of 8

R&D

What went wrong on the way, and what changed because of it.

The first lid had a left-hand thread. The lid is modelled upside down for printing. A part that is flipped into use is rotated, not mirrored, and the preview had mirrored it too. A spool and a day of printing. Now a thread-hand check runs on every threaded part before export.
The second lid stopped 30 mm short. Its grooves sat at the open end instead of the seated position, so the crest ran out of groove. Now a plane-slice seat check compares groove to crest every millimetre.
The seal's logo vanished. A 1 mm pocket under a 2 mm dish, printed face down, bridged shut. The logo now prints in place as the second colour on a flat top.
The vape's first cap fed one device. The second fed five through a spine channel, and the middle one still drew hardest. The third runs five straight feeds from the base, one per seat, with bigger bores and a bigger collector.
